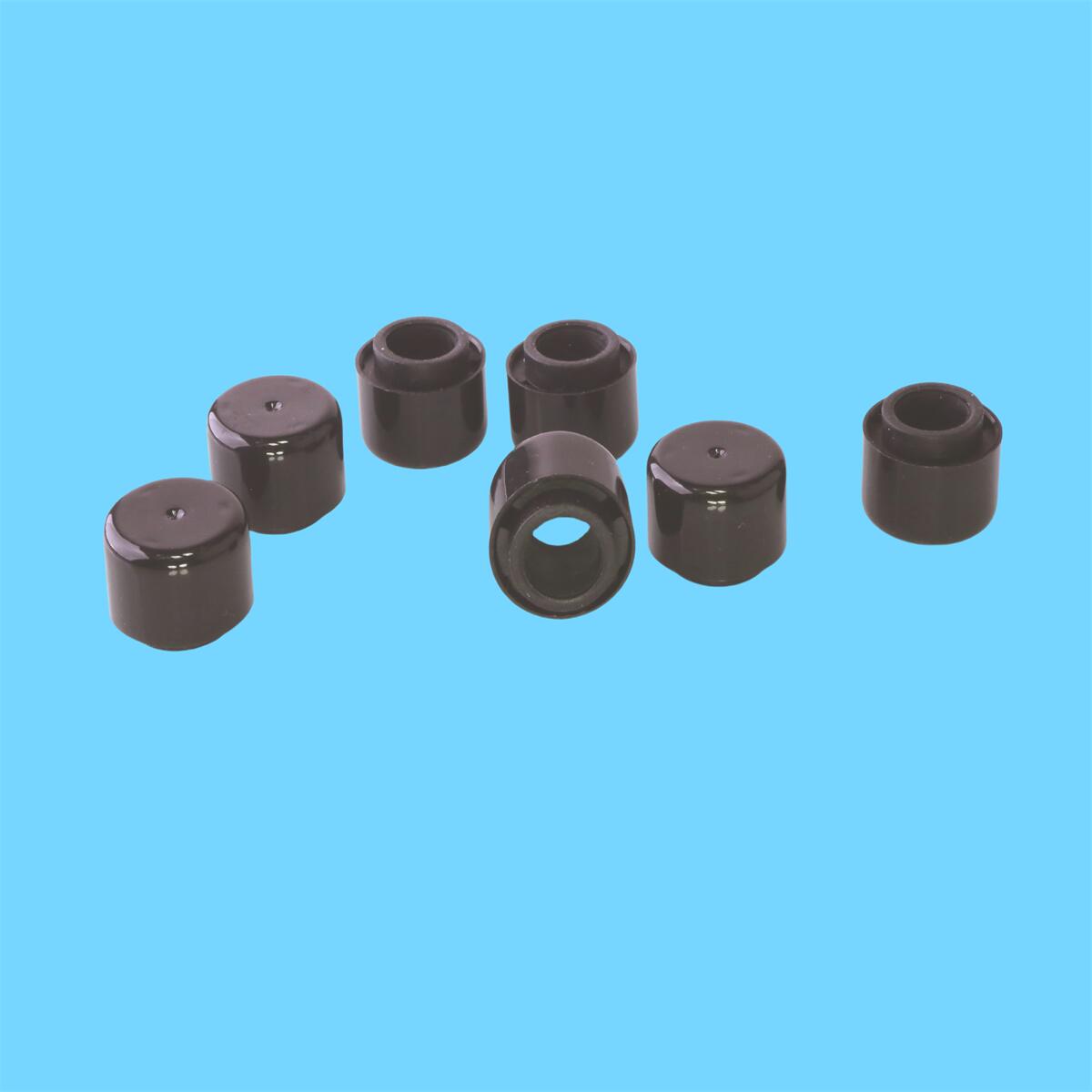

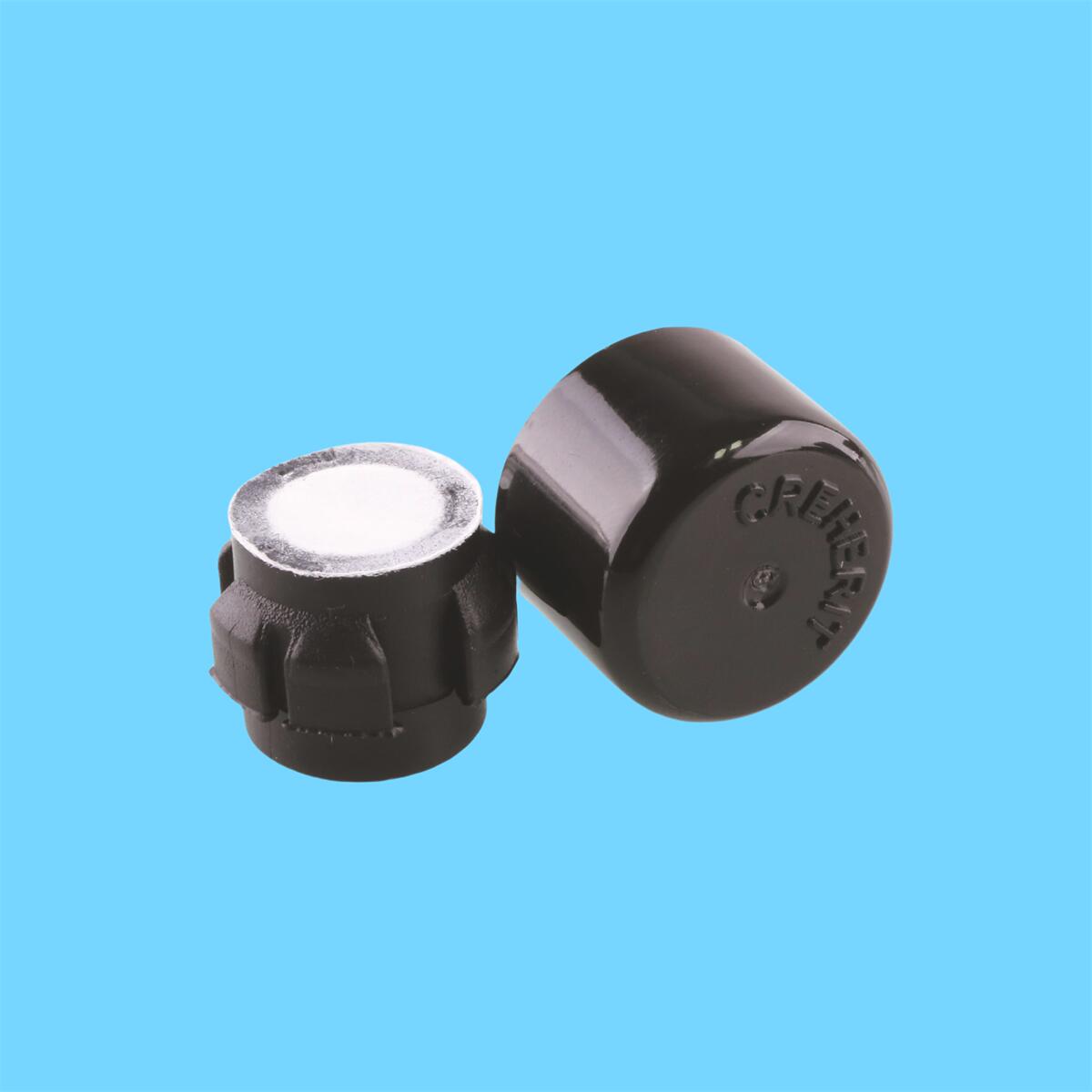

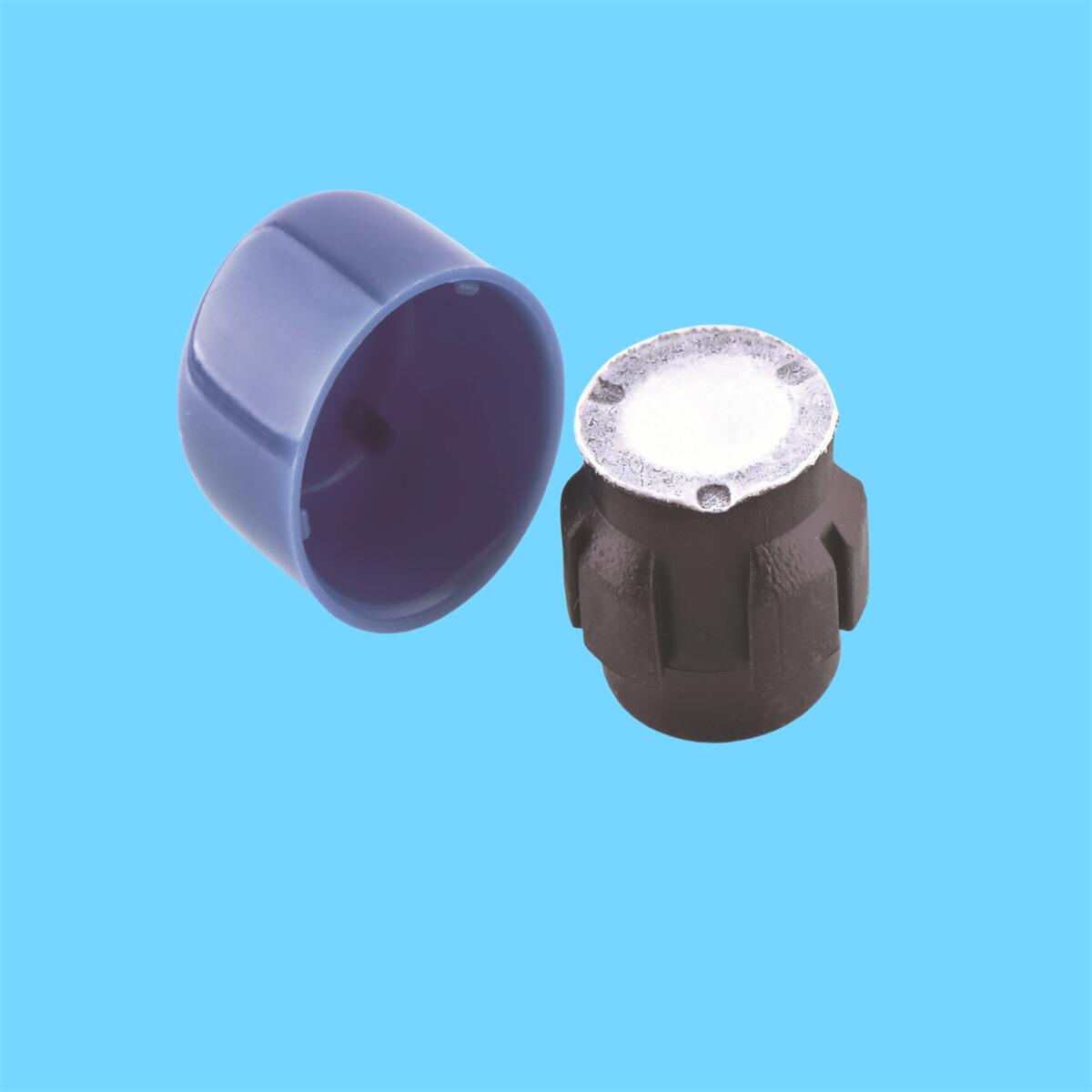

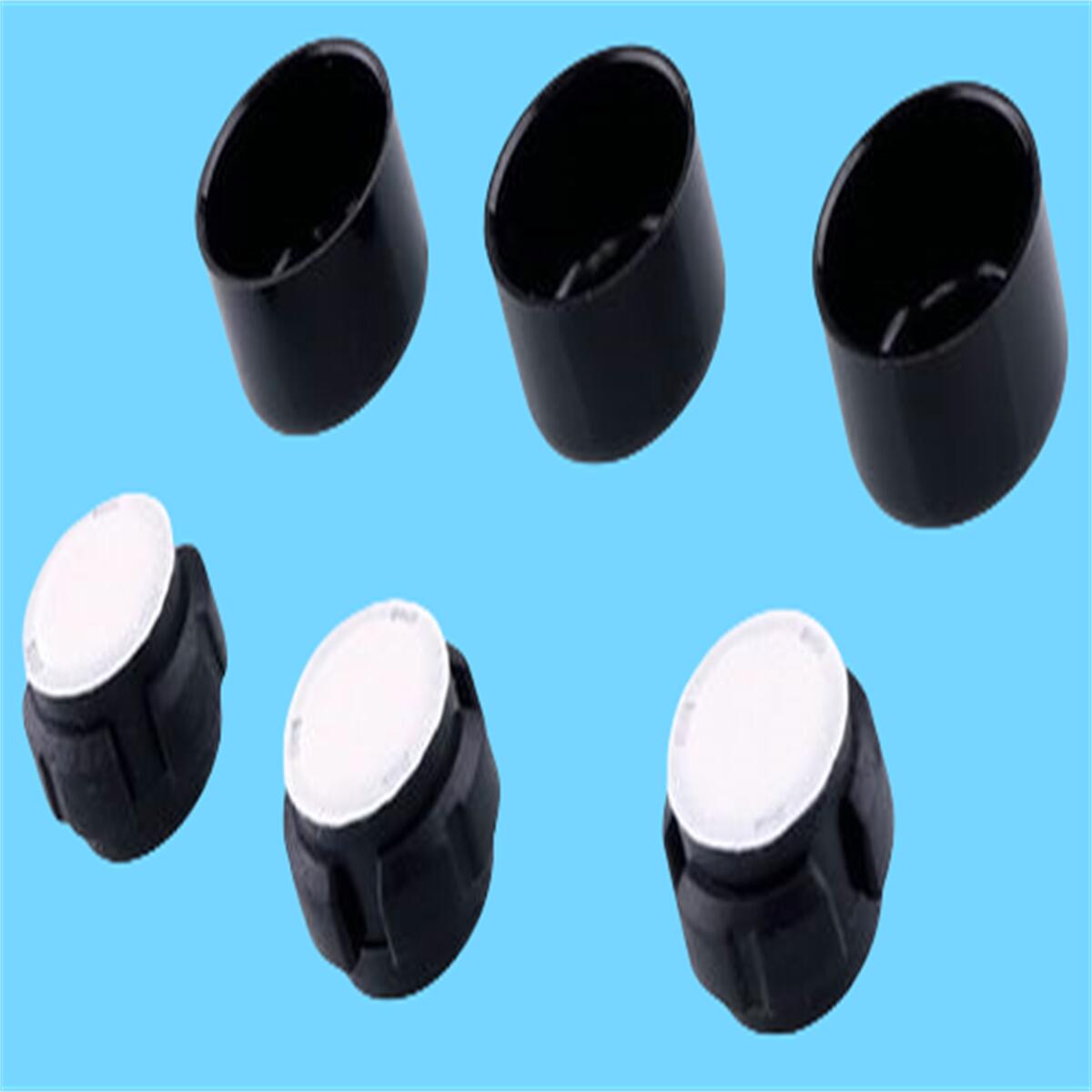

China Factory Hydrophobic E-PTEF Membrane Gas Permeable plug Air Vent

Automotive Vents

China Factory Hydrophobic E-PTEF Membrane Gas Permeable plug Air Vent

The waterproof and breathable cap product was independently developed by Protection can prevent it from being punctured, collided and other injuries, improves the lifespan, and improves the safety, reliability and durability of the product. The entire component creates new functions and features, reduces costs, and enables one-click installation.

  • Installation hole diameter (mm) φ7.8
  • IP rating IP67 (2 meters underwater, waterproof for one hour)
  • Temperature resistance -40℃ to +125℃
  • Application Fog lights, headlights, tail lights

Product Description

Outdoor self-adhesive protective breathable membranes are constantly exposed to harsh environments such as heavy rain, dust, sand and strong winds. Under changing environmental conditions, pressure builds up within the sealed housing, which stresses the seal. Over time, pressure can cause seals to fail, allowing water, corrosive liquids, salts and particles to enter the case and damage the electronics inside.
Self-adhesive protective breathable films are the leading solution for protecting sensitive electronic equipment. Self-adhesive protective breathable membrane allows air to move freely in and out of the sealed enclosure, equalizing pressure and reducing condensation. At the same time, they provide a long-lasting barrier to protect electronic devices from contamination. The result is improved reliability, safety and product life of sealed electronic devices.

Data parameters

application car vents
place of production Jiangsu, China
strength Hydraulic
type Exhaust valves, air valves and exhaust ports
structure plug
Custom support OEM, ODM, OBM
Port size standard
model  HR-WB-12
Medium temperature high temperature
brand  XZP
media gas
Standard or non-standard standard
color Black
product name Breathable plug breathable cap
strength Hydraulic
media gas
Inlet water pressure -120 mbar (>1 meter)
 IP Rate  IP67
Temperature resistance  -40℃~+150℃
Certificate  ISO9001
pressure high pressure
China Plywood Manufacturer--Film Faced Plywood (5)m9w
China Plywood Manufacturer--Film Faced Plywood (6)tt0
China Plywood Manufacturer--Film Faced Plywood (7)lwn

Packaging and delivery

Packaging details 200PCS car vent/bag; 25 bags/box
 Sales unit Multiples of 5000
 Packaging size per batch 39*33*23 cm
 Gross weight of each batch 9.000kg

Breathable Plug Breathable Cap Data Sheet

breathable membrane 2300ml/min/cm² (pressure difference=70 mbar)
breathable membrane material Expanded polytetrafluoroethylene, polyester
canning materials polypropylene
Internal material thermoplastic elastomer
